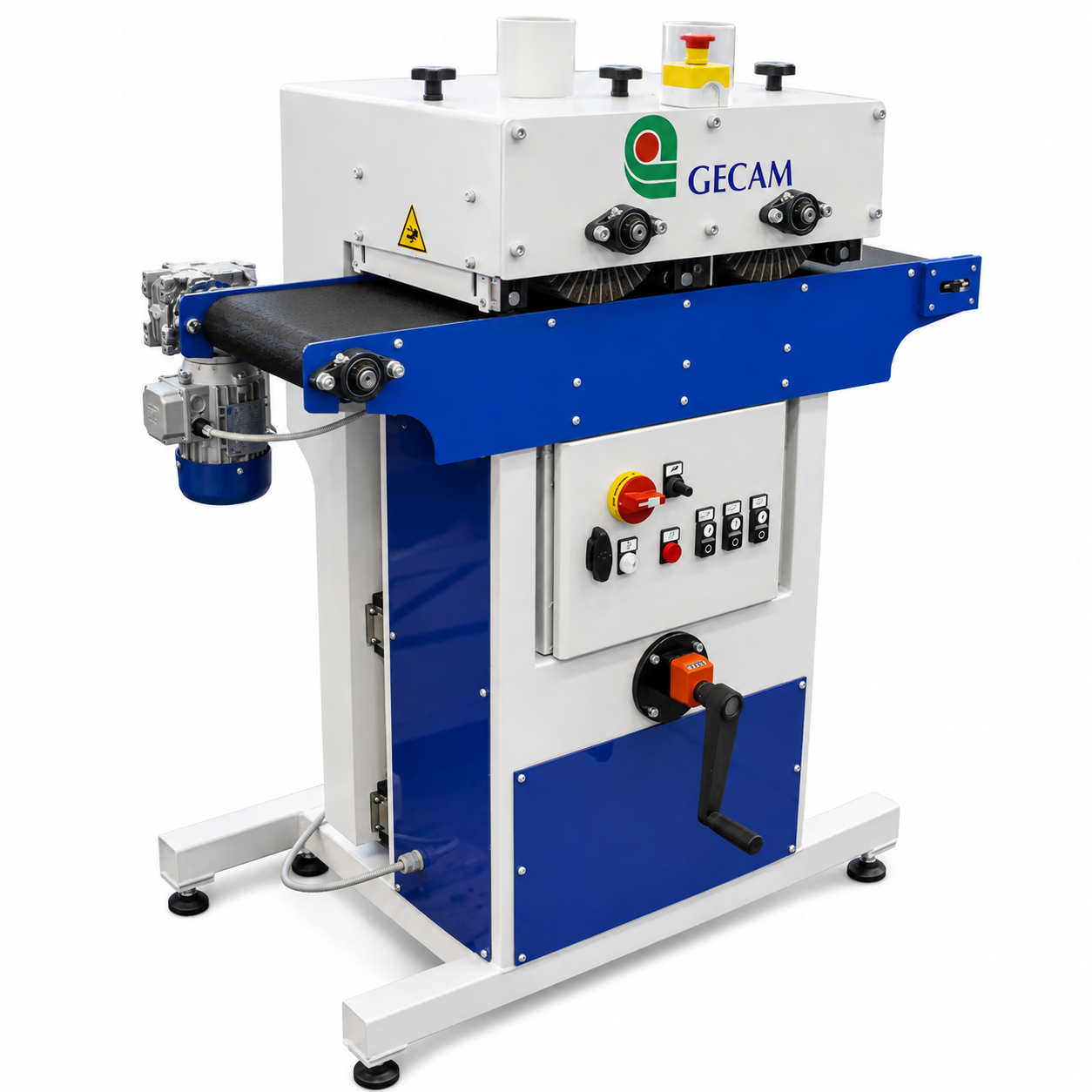

GECAM CUB 30 BB Metal Deburring, Grinding, Edge Rounding, Polishing Machine

GECAM CUB 30 BB Metal Deburring, Grinding, Edge Rounding, Polishing Machine

£12,995.00
£12,995.00
Promotion Épuisé

En stock

Frais d'expédition calculés à l'étape de paiement.
  • Solid structure totally made in high resistance electro-welded steel
  • Single structure of the brush group with a handwheel for heads movement
  • Brush heads assembled on precision rails to guarentee the best stability and precision
  • Heads open on one side, with the possibility to work also with pieces bigger than 300mm
  • no 3 pressure roller

CUB 30 BB is a manual brushing machine suitable for different processes of metal manufacturing such as grinding, deburring, edges rounding and polishing for various types of materals such as, Stainles

Deliver in 60 days Deliver in 60 daysOrder before 3pm
Secure checkout Secure checkoutEncrypted payment
Free UK delivery Free UK deliveryOver £99.99
Bulk / consignment Bulk / consignmentOptions available
Afficher tous les détails
  • Solid structure totally made in high resistance electro-welded steel
  • Single structure of the brush group with a handwheel for heads movement
  • Brush heads assembled on precision rails to guarentee the best stability and precision
  • Heads open on one side, with the possibility to work also with pieces bigger than 300mm
  • no 3 pressure roller

CUB 30 BB is a manual brushing machine suitable for different processes of metal manufacturing such as grinding, deburring, edges rounding and polishing for various types of materals such as, Stainless Steel, Steel, Brass, Copper and Aluminium.  This machine is equipped with a variable speed of the conveyor belt to handle speed of feed-in of parts.  It is also possible to have variable speed for the brushes.

Brush diameter mm 180
Working size mm 300
Speed m/min 1-7
Minimum item length mm 100
Min/max working depth mm 0,5/250
Max size mm 1150 x 750 x 1200
Weight kg 385
